| Self-adhesive switchable glass
What is the self-adhere switchable glass ?
Self-adhesive switchable glass is manufactured with a self-adhesive cling layer on one side of glass pannel or any other transparent material which makes it easy to apply to both new and existing glass. When power ON or OFF mode switches is leading to PDLC film from clear to frosted . It’s being acts as an electronic blind and provided instant privacy to wall glass of window or partition etc. When regular glass has already installed and it is not convenient to replace it with smart (PDLC) glass. Adhesive smart film will be your best choice. It can be easily peel and stick to the existing glass surface, no need to change glass, easy installation, make your home to smart by yourself.
The different of self-adhere switchable glass and Laminated switchable glass
Self-adhesive switchable glass is stick to existing glass surface or cling layer on one side of glass pannel or any other transparent material directly. No need to change exsiting glass, easy installed. The interlayer film that is organic ploymer film between two or more pieces of glass panel through by high temperture and pressure to be comprising Laminated glass. They are both switchable glass and same function on instant privacy under power apply ON or OFF, but different structure processing. Also, on application market, the laminated smart glass is focus on the high traffic area of wall glass panel, partition, shower room etc, but self-adhesive switchable smart glass is biased to the place where few people to touch or low activity area. All this, in view of the laminated switchable glass interlayer film is between two or more glass and has a good protection but self-adhesive switchable glass of smart film is stick to the existing glass surface or cling layer on one side of glass pannel directly, no outer layer to protection.
Self-Adhere switchable smart glass products details info as following:
• Single glass thickness: 5 / 6 / 8 / 10 / 12 / 15 mm
• Switchable smart film thickness: 0.38 / 0.76 / 1.12 / 1.52 / 1.9 / 2.28 mm
• Glass type: Tempered glass, Low-E glass, Tounghened glass, Folat glass, Tinted glass, obscured
                     glass, Insulated glass and laminated glass.
• Glass shape: flat, curved and irregular shape.
• Glass Colour: Clear, super clear, blue, navy blue, green, dark & light grey, bronze etc.
• PVB (smart film) colour: blue, navy blue, green, dark & light grey, bronze etc.
• Glass Max size: 2440 x 3660 mmm
• Comply with Certificate of BS6206, EN12150, CSI, EN14179, EN14449 and ANSI .Z97.1-2015

Application

• Glass wall panels
• Office Partitions
• Meeting Room
• Display & HD screen
• Bathroom & Shower
• Skylights

Benefit

• Safety & Security
• Instant Privacy
• Sustainability save energy
• Insulated sound
• Health & Wellness
• Frameless glazing offering acoustic properties

Spec

• Power - 48VAC
• Frequency - 50/60Hz
• Current - 0.1 amperes per m2 & Power - 5 watts per m2
• Switching - less than 1 second
• Light transmittance - On (88%) Off (60%)
• Haze Coefficient - On (3%) Off (98%)
| Pictures

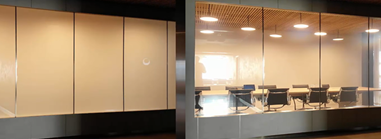

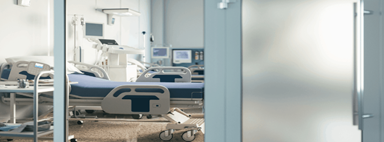

  • Self-adhesive switchable smart glass

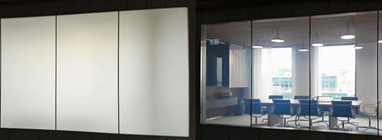

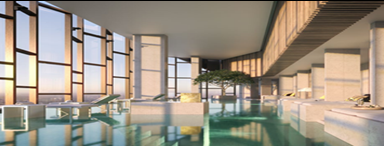

  • Self-adhesive smart film glass

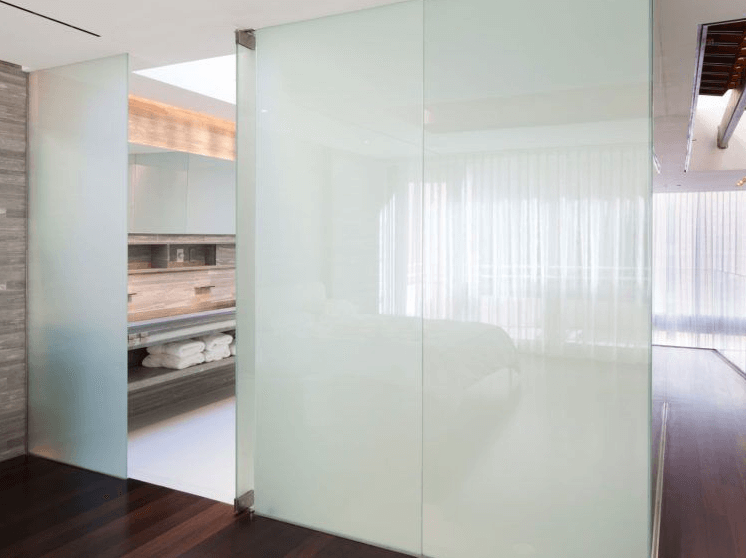

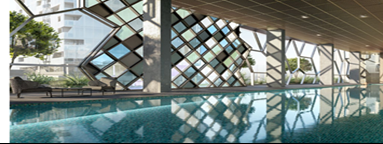

  • Self-adhesive switchable privacy glass

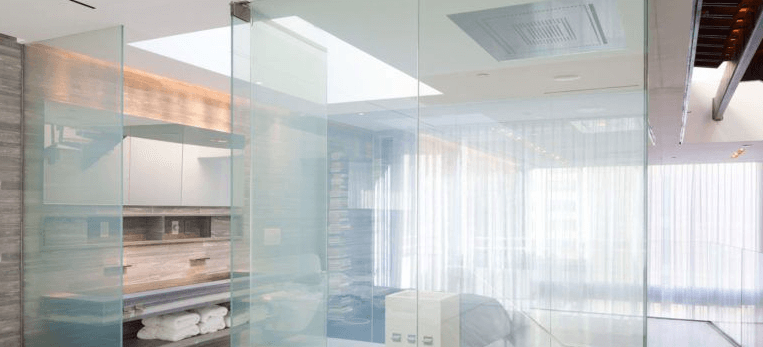

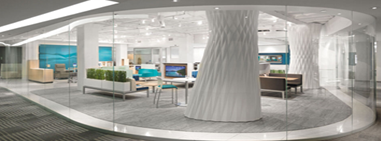

  • Self-adhesive smart privacy glass

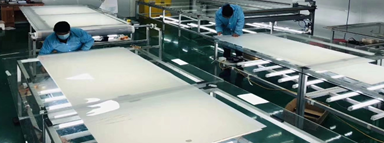

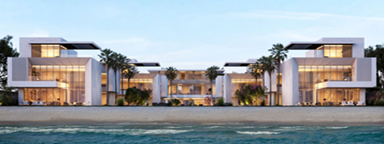

  • Self-adhesive switchable glass

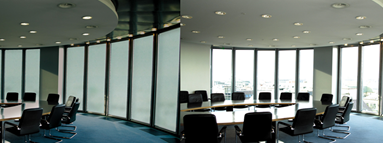

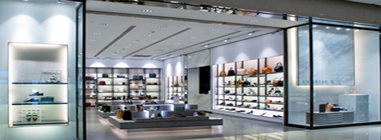

  • Self-adhesive smart glass
