Switchable glass Installation

Power control unit is a device of electrical for privacy glass and PDLC film application. It can be changed from higher voltage to lower work voltage for switchable privacy glass and PDLC film. Different countries have different standard of Voltage required. AMG can be provided the OEM & ODM service or customized business. High quality of Transformer is sure that the interlayer PDLC film has stable voltage and reduced to damage for conductive coating of smart film.

Remote control & Wifi-APP control is enable for Power control unit.

Electrically switchable smart glass - Power Supply System

Power Control System

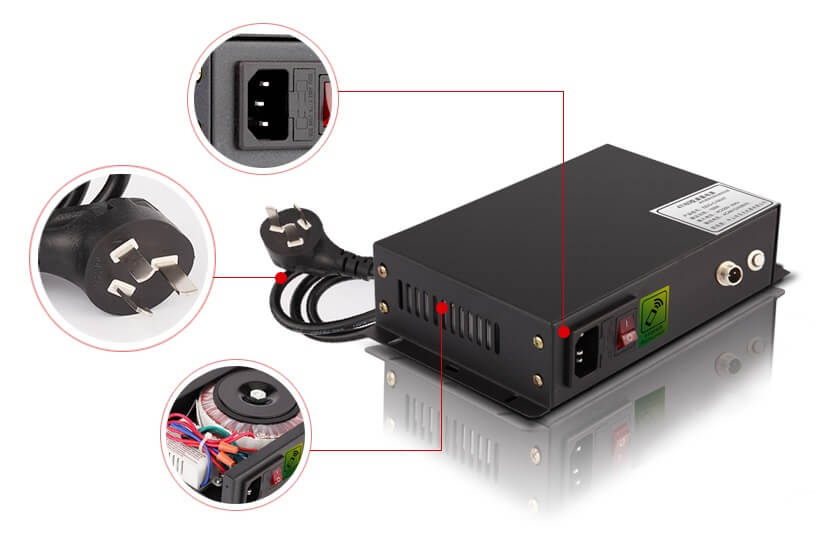

The power transformer (also referred as power supply or power control unit) is a device which supply the rated of voltage for PDLC film or smart glass. Testing data show that the switchable products is full operation working under voltage of 36-60vac. the power transformer is such the device which not provided safe and steady of current for smart glass but sure the switchable glass operation works in good condition with input 0-240vac, and also the 12v DC.

Power Transformer Feature

• On/off switch, instant privacy less than 1 second

• Remote control, range of distance in 20 meters.

• Mobile App control-switchable windows.

• Clear to opaque and vice versa by a dimmable transformer.

• Choose whatever a transmittance your switchable window you want.

• Different power capacity can be customized.

• Transformer standard power rate is available with 50/100/150/200/250watt, etc

• Multi-input current can be applicable.

• The power control unit can support building current in VAC and automobile current in DC.

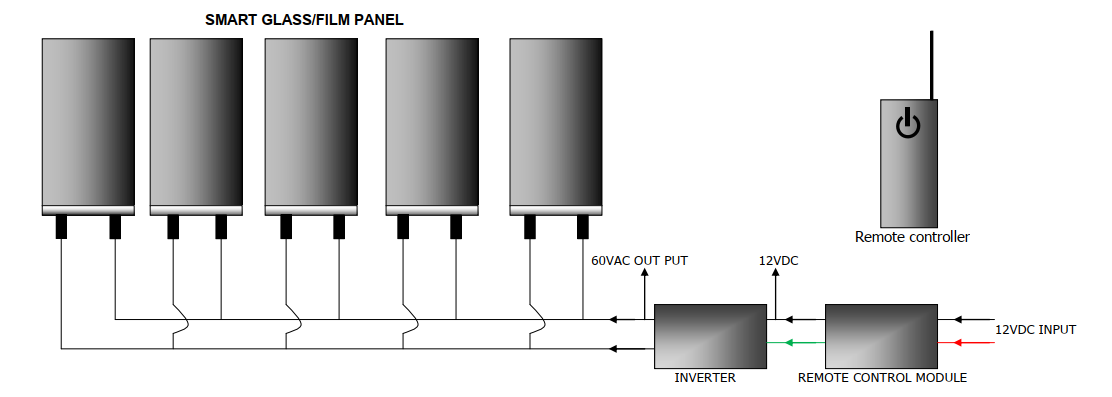

Switchable glass Installation - Power Supply System and Wire diagram

• The state of being acquiescent, wire is open ended for your hardwire connection. Also, wire position can be customized based on required.

• All final dimensions and busbar wiring position should be confirmed prior to manufacturing.

• The switchable glass/Smart tint should be wired/connected according to our connection diagram which will be included in the shipment.

• The wire diagrammatic sketch as above for Ref.

6 Points of Switchable Glass Installation

Switchable glass Installation - 6 points of details for attention.

1, Glass glue being used appointed or refer in particular to the brand of Toshiba GE83 or Toshiba381 between the gap of glass panel.

2, The switchable glass panel must be carried in vertically but not to be laid flat moved When transportion and Installation.

3, On condition of exposing by sunlight a long time or outside, the switchable glass must be consisted of hollowed and Low-E glass.

4, The switchable glass can not be installed under a high concentration of acid environment site.

5, What importance steps of installation for switchable glass. Installed glass firstly and sticked or self-adhere smart film later. ( self-adhesive switchable glass )

6, Double checked the surface of glass and smrt film have no any dust, water and defective and ensure the smart film is no scuffing when stick or self-adhere on surface of glass. ( self-adhere switchable glass )
